I made this design for my own enjoyment, but many people have been interested in having one, my
goal was to replace the
existing Spectrum+ keyboard with something more reliable and modern and also to further my own
skills.

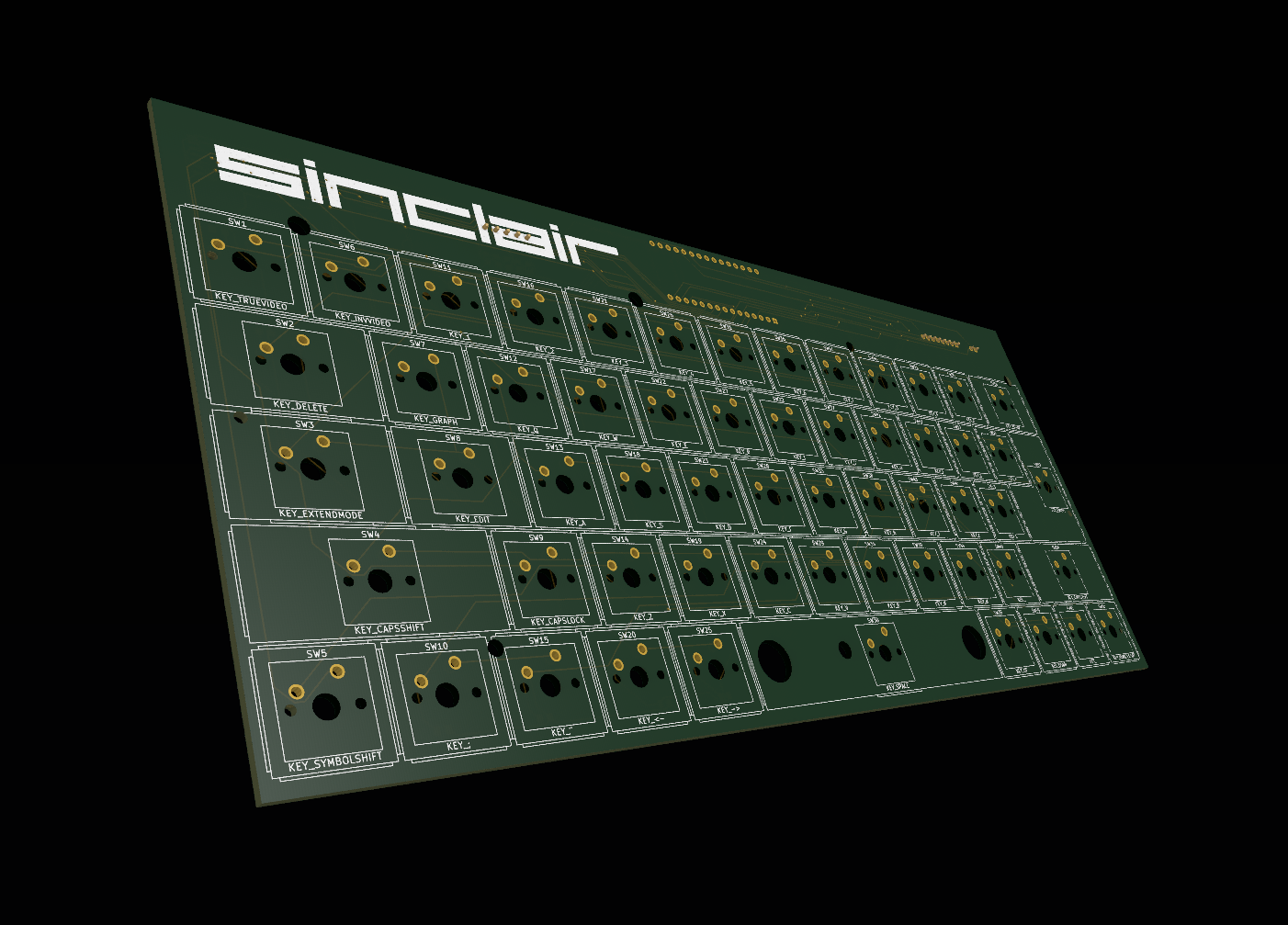

Essentially it is a reimplementation of the ingenious master level of cost reducing 3 layer
membrane as used on the original the spectrum+, but in PCB form. It uses Cherry
MX switches (5-pin) and you can use Spectrum+ keys as they will press on to these quite firmly
or you can add your own cherry keys. My own personal version connects to my Harlequin, I have
replaced the membrane receptacles with Pin headers and used ribbon cables to connect the
keyboard to the board. Feel free to experiment with your own solutions.
Have the PCB? Instructions are here
Cherry Keyboard for Spectrum+ 48k and 128k Toastrack with ability to be used as a USB keyboard

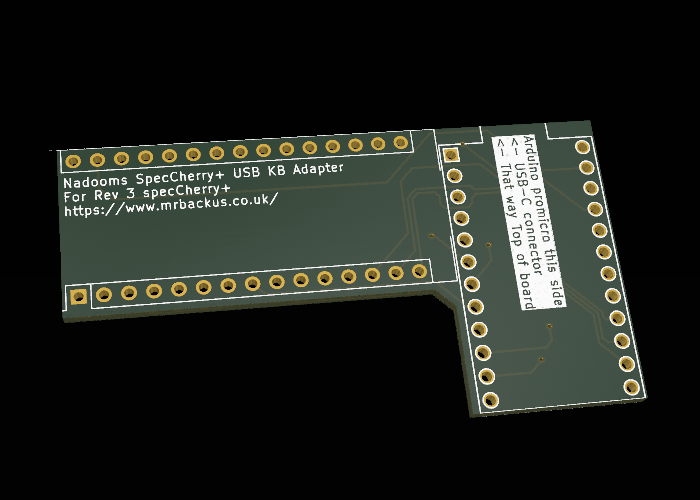

Add to a SpecCherry and you can use this as a standard USB HID Keyboard

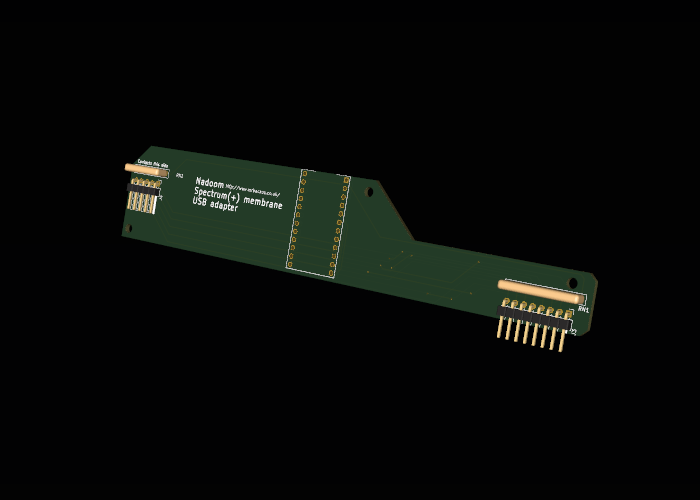

Plug in the spectum 48k/+ membrane in to this and you can use the keyboard as a USB keyboard

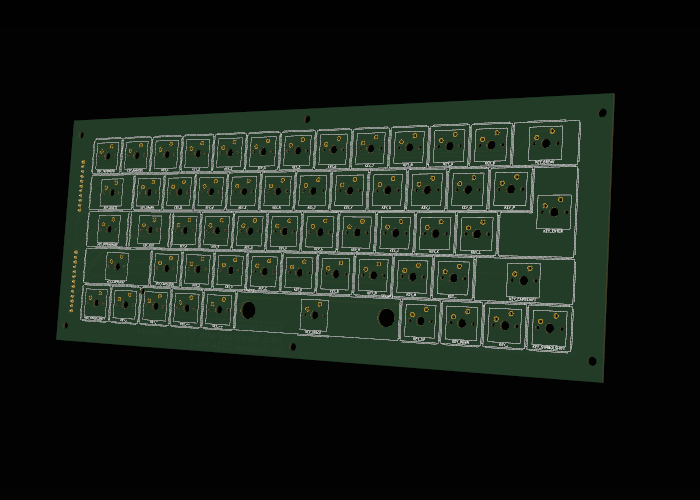

Cherry Keyboard for +2A and +3 computers
